Which rack system fits your plans?
Choose 2×3 for a suitable basic lifting setup. Choose 3×3 when the attachment ecosystem justifies the extra cost. Within REP’s 3×3 range, PR-4000 uses 5/8-inch hardware and PR-5000 uses 1-inch hardware; confirm your actual attachments before choosing.
Chosen your tube size? Compare the PR-4000, PR-1100, Titan X-3 and Rogue flat-foot options against your budget, anchoring plan and complete setup cost. Get a rack shortlist for your room, budget and anchoring plan.
The steel size is easy to compare. Attachment compatibility is not. Two racks can both be advertised as 3x3 and still reject the same lever arm, safety or plate holder because their tubing, holes, pins or spacing differ slightly.
For most buyers, the real decision is therefore not “Which rack is stronger?” Both formats can support far more than a normal home-gym lift when built from 11-gauge steel and properly braced. The useful question is “Which ecosystem do I want to own for the next decade?”
| Feature | 2x3 rack | 3x3 rack |
|---|---|---|
| Home-gym strength | More than sufficient in a well-designed 11-gauge rack | More than sufficient; larger section resists movement and twisting |
| Typical price | Lower | Higher, especially with 1-inch hardware |
| Attachment selection | Good within the matching rack family | Largest market, particularly 3x3 with 5/8- or 1-inch holes |
| Attachment orientation | Front and side faces differ | Square profile simplifies rotation between faces |
| Weight and handling | Lighter uprights and components | Heavier to move, assemble and expand |
| Best fit | Value-focused basic strength setup | Expandable rack, storage and cable ecosystem |
Rack-tube dimensions: 2×2 vs 2×3 vs 3×3

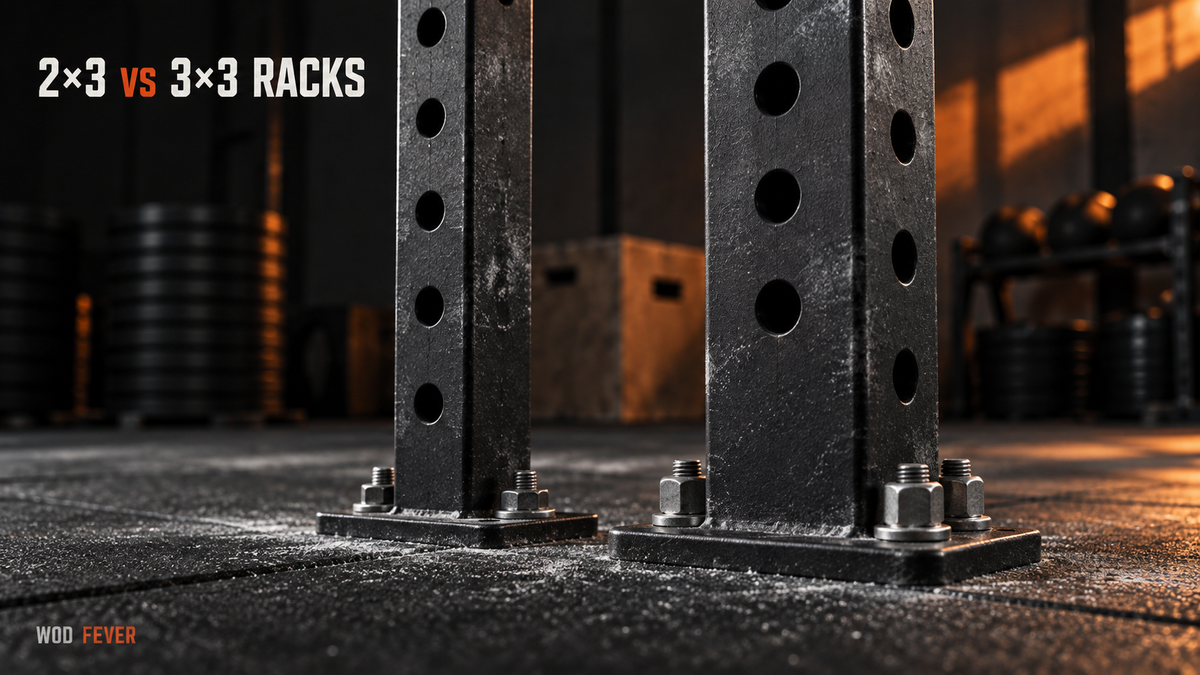

The illustration compares common outside tube shapes. A 2×3 upright has different front and side dimensions; a square upright has equal faces. A 2×2 rack can suit basic lifting when its complete design, safeties and published rating support the intended lifts. It is a different attachment interface, rather than a smaller version of the same 3×3 ecosystem.
2×2 vs 3×3 racks: compare actual models, not tube size alone
A 2×2 rack is a separate buying option from a 2×3 rack. The examples below also show why a hole measurement does not identify an attachment ecosystem: the PR-1100 and PR-5000 both list 1-inch holes, but use different upright sizes and compatible attachments.
Four rack systems compared. Manufacturer specifications checked October 28, 2026. Crossmember length, working depth and complete installed depth are different measurements.
REP PR-1100
- Uprights
- 2×2 in; 14-gauge
- Published holes
- 1 in
- Hole spacing
- 3 in
- Height
- 85 in
- Depth measurement
- 48.5 in overall; 24 in working area
A basic squat-and-bench setup with its own 2×2 attachment family. J-cups and pin/pipe safeties are included.
Check PR-1100 packageTitan T-3 — 82 / 24
- Uprights
- 2×3 in; 11-gauge
- Published holes
- 11/16 in drilled holes
- Hole spacing
- Westside bench zone; 6 in side spacing
- Height
- 82 in
- Depth measurement
- 24 in inside; 30 in outside frame
For a rectangular-upright system. Match T-3 attachments and the selected depth; budget compatible safeties and the required installation.
Compare exact Titan packagesREP PR-4000
- Uprights
- 3×3 in; 11-gauge
- Published holes
- 5/8 in
- Hole spacing
- 1 in bench zone; 2 in elsewhere
- Height
- 80 or 93 in uprights
- Depth measurement
- 16, 24, 30 or 41 in crossmembers
Start here when close bench-height adjustment or a supported 4000-series attachment meets your plan. Price a complete configuration.
Configure PR-4000REP PR-5000
- Uprights
- 3×3 in; 11-gauge
- Published holes
- 1 in
- Hole spacing
- 2 in
- Height
- 80 or 93 in uprights
- Depth measurement
- 16, 30 or 41 in crossmembers
Choose this family when a specific supported 1-inch attachment warrants it. Pin diameter alone does not establish fit.
Configure PR-5000Before ordering: confirm the exact series, revision, safeties, anchoring and installed clearance. A shared hole size or 3×3 label does not guarantee attachment compatibility.
Sources: PR-1100 specifications, selected T-3 and REP’s PR-4000/PR-5000 comparison. Rack ratings are model-specific; they are not equivalent drop tests.
Buying rule: a suitable 2×2 model can meet a basic squat-and-bench plan. Move to 2×3 or 3×3 when a specific safety adjustment, attachment or future configuration requires that exact system. Compare the complete rack packages before paying for an ecosystem you will not use.
Before ordering an attachment: record both outside tube dimensions, nominal pin system, hole centers and bracket inside dimensions. True 3-inch tubing is 76.2 mm; a nominal 75 mm upright differs by 1.2 mm. Do not infer cross-brand fit from the “3×3” label. REP’s rack guide identifies PR-4000 and PR-5000 as separate 3×3 hardware families.
Check the complete rack, bar and room together with the Home Gym Planner before ordering.
Strength: tubing size is rarely the limiting factor
A rectangular 2x3 upright has less cross-sectional size than a square 3x3 upright, but rack strength also depends on steel gauge, hole pattern, welds, hardware, crossmembers, base design and anchoring. A full 2x3 cage made from 11-gauge steel can safely handle loads beyond what most owners will put on it.
Published “weight capacities” are difficult to compare because manufacturers do not all test racks the same way. Static load on J-cups is different from a bar dropped onto safeties. Treat capacity as one input, then examine the complete frame and how it is secured.
A 3x3 rack can feel more substantial and provides a wider surface for attachments, but buying it solely for a larger capacity number is usually poor value. Buy 3x3 for the ecosystem, hole options and expansion path.
Why 3x3 racks dominate premium home gyms
Square uprights make accessories easier to orient. An attachment designed for the front face can often rotate to the side when the hole pattern permits. Manufacturers also concentrate their newest cable systems, storage components, articulating arms and specialty attachments around 3x3 platforms.
There are two major 3x3 families:
- 3x3 with 5/8-inch holes: typically the value-focused modular tier. Examples include Rogue Monster Lite, REP PR-4000 and Bells of Steel Hydra-style systems.
- 3x3 with 1-inch holes: typically the premium tier with larger hardware and extensive accessory options. Examples include Rogue Monster, REP PR-5000 and Bells of Steel Manticore-style systems.
One-inch hardware looks and feels heavier, but it does not automatically produce a better workout. The main economic question is whether the attachments you intend to buy exist in that family and whether their prices fit the full build budget.
The compatibility checklist buyers miss
1. True 3 inches versus metric tubing
True 3x3 tubing measures 76.2 by 76.2mm. Some imported racks use 75 by 75mm tubing but are marketed in the United States as 3x3. The 1.2mm difference on each dimension can make a wraparound attachment loose, tight or impossible to close.
Simple single-pin accessories may tolerate the difference. Tight-fitting J-cups, rollers and attachments that wrap around two or three faces are less forgiving. UHMW plastic shims can remove small amounts of play, but they do not fix a pin that fails to align.
2. Hole and pin diameter
Common attachment systems use nominal 5/8-inch or 1-inch pins; a published hole diameter is a different measurement. Titan lists 11/16-inch drilled holes for the reviewed T-3, which is a 5/8-inch attachment-pin ecosystem. Confirm both the exact attachment pin and rack hole specification. A 1-inch pin cannot enter a 5/8-inch hole. A smaller pin in a larger hole may move excessively and can place load where the attachment was not designed to carry it.
Titan’s T-3 line illustrates the 2x3 category with 11-gauge uprights, while its X-3 moves to 3x3 uprights. Rogue’s Monster Lite system uses 3x3 11-gauge steel with 5/8-inch hardware; Rogue Monster uses 3x3 steel with 1-inch hardware. Bells of Steel similarly separates its true-3x3 Hydra system with 5/8-inch holes from Manticore with 1-inch holes.
3. Hole spacing and face layout
Two attachments can use the same pin diameter but still fail if their second pin does not align. Measure center-to-center hole spacing and confirm which faces are drilled. “Westside spacing” generally means closely spaced holes through the bench-press region, but it does not describe the entire upright.
This matters most for multi-pin attachments, crossmembers, safeties and cable components. A landmine held by one pin is easier to cross-fit than a trolley that must travel smoothly along the upright.
4. Orientation on 2x3 tubing
A 2x3 upright has a 2-inch face and a 3-inch face. An attachment shaped around the 3-inch face may not rotate 90 degrees. Before ordering, decide whether it mounts to the front, side or both and whether the pin approaches from the correct direction.
Which rack should you buy?
Choose 2x3 if:
- You want a strong rack at the lowest sensible total cost.
- Your planned attachments are basic: J-cups, safeties, dip station and plate storage.
- You are comfortable staying within one manufacturer’s rack family.
- You value lighter components and do not expect to build an integrated cable system.
Choose 3x3 with 5/8-inch holes if:
- You want the best balance of price, modularity and attachment choice.
- You plan to add storage, spotter arms or cable components later.
- You want square uprights without paying for 1-inch hardware.
Choose 3x3 with 1-inch holes if:
- You want a premium long-term rack ecosystem.
- Your target attachments are offered only in the 1-inch family.
- You accept higher prices and heavier components for maximum configurability.
Make a list of the five attachments you are most likely to buy. Price the rack plus those items—not the bare frame. An inexpensive rack can become costly if compatible accessories are scarce, while a premium rack can be wasteful if it will hold only a bar and safeties.
Historical price examples and current-cart checks
The following September 16, 2026 figures are historical category examples, not current offers or comparable complete carts. Titan listed a 2x3 T-3 rack configuration around $520. REP listed its 3x3 PR-4000 builder from $1,249 and 3x3 PR-5000 builder from $1,499. Rogue listed Monster Lite racks from roughly $935 and Monster racks around $1,610. Final prices change with height, depth, safeties, pull-up bars, color and shipping.
Warranty language also varies by component. Bells of Steel advertises lifetime coverage on frames and barbells with shorter coverage for wear parts. REP advertises lifetime coverage on selected products and a 30-day return window. Verify the exact frame, attachments, commercial-use exclusions and return freight before ordering a system that may weigh several hundred pounds.
Pricing note: Historical starting prices do not establish today's price difference or final budget. Configure the rack with safeties and every required crossmember before comparing totals.
Room fit still comes first
Tubing size changes each upright by only an inch. Rack depth, height, stabilizers and attachments determine most of the room footprint. Use our 24 vs 30 vs 41-inch rack-depth guide before committing to an ecosystem.
After choosing the tubing size, compare 5/8 vs 1-inch rack holes before locking into an attachment ecosystem. If room dimensions are still uncertain, test the complete setup in our free Home Gym Planner.
Frequently asked questions
Is a 2x3 power rack safe for heavy squats?
A properly designed 11-gauge 2x3 rack with suitable safeties and anchoring is sufficient for heavy home-gym lifting. Confirm the manufacturer’s instructions and capacity for the exact model.
Will all 3x3 rack attachments fit?
No. True 3-inch and 75mm tubing can fit differently, and hole size, pin size, spacing and usable pin length must also match.
Is 1-inch hardware better than 5/8-inch?
It is larger and associated with premium rack lines, but both sizes are strong enough for normal home-gym use. Choose based on the attachment ecosystem and total build cost.
Can I mix rack brands?
Sometimes. Single-pin accessories are the easiest. Multi-pin, wraparound, trolley and cable attachments demand much closer dimensional alignment. Confirm measurements rather than relying on brand-category labels.
Research methodology
We compared current tubing, hardware, pricing and warranty information from Titan Fitness, Rogue Fitness, REP Fitness and Bells of Steel. We also reviewed current compatibility guides and recurring owner discussions about metric tubing, pin fit, attachment play and upgrade paths.
Starting the whole gym from scratch? See our home equipment buying order before spending on upgrades.
Complete the fit check: after choosing rack geometry, verify 6ft vs 7ft barbell rack fit and use the Home Gym Planner to test the rack, bar and room together.
Choosing between Titan T-3 and X-3?
Use the current T-3 vs X-3 configuration and complete-cost comparison for matched 36-inch bolt-down baskets, the separate X-3 Flat Foot design and actual 5/8-inch pin versus 11/16-inch hole dimensions. If lever arms are on your list, check the T-3, X-3 and TITAN arm interfaces and anchoring requirements before buying the rack; a shared nominal tube or pin size does not establish compatibility.
