24 vs 30 vs 41-Inch Power Rack Depth: Which Fits Your Gym?

Chosen your working depth? Match it to a rack with the right installed footprint, safety parts and delivered configuration cost. Get a rack shortlist for your room, budget and anchoring plan.

Power rack dimensions: interior depth and total footprint

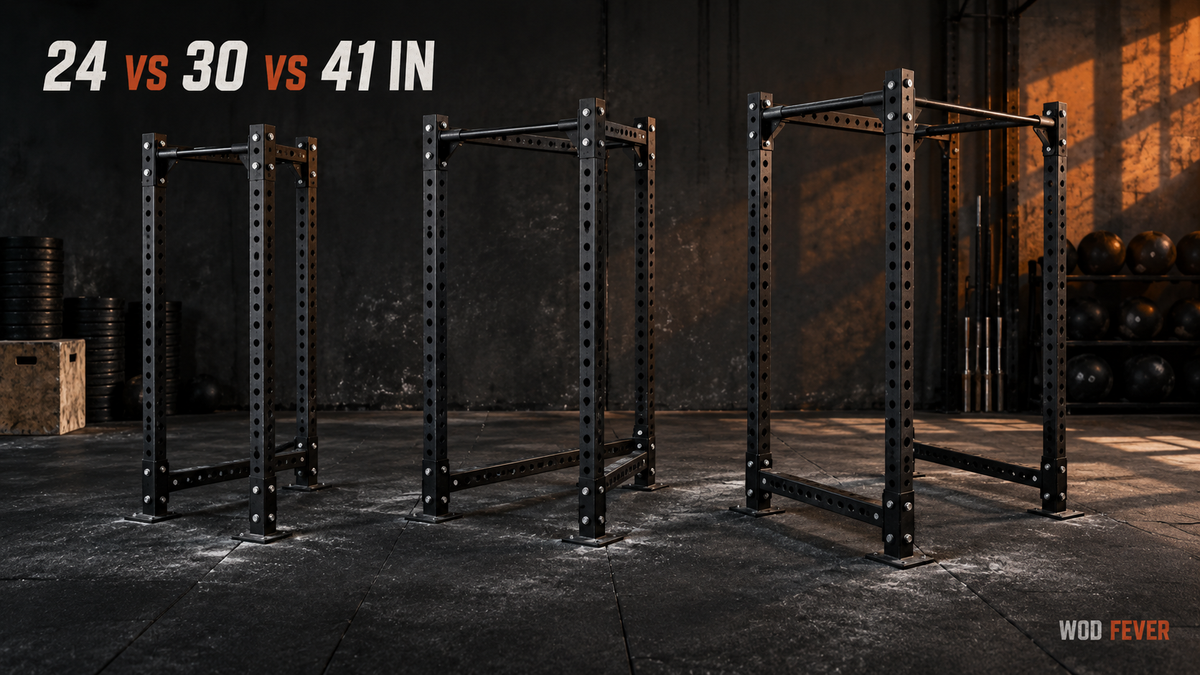

The illustration compares shallow, medium and deep rack layouts. As a geometry example, a 24-inch clear interior plus two 3-inch uprights makes a 30-inch exterior frame before feet or attachments. Do not apply that addition automatically to a product’s advertised depth: a manufacturer may quote crossmember length, interior space or assembled depth. Use its build drawing to identify which measurement you have.

Rack footprint worksheet

All measurements are in inches. These are example inputs; replace them with your equipment and room measurements.

Clear room depthComplete assembled rack depthReserved rear spaceReserved front working space

Calculate with my measurements

Remaining depth = room depth − assembled rack depth − rear reservation − front reservation.

In the example, 144 − 70 − 12 − 42 leaves 20 inches unallocated. That is a room-budget calculation, not a universal clearance recommendation. Rehearse your bench position, loading and exercise travel. For current REP options, the rack guide lists 24-inch crossmembers for PR-4000; PR-5000 lists 16, 30 and 41 inches. Cable systems, storage bays and feet need their own assembled dimensions.

Check the complete rack, bar and room together with the Home Gym Planner before ordering.

Want to compare Amazon listings? Browse 30-inch and deeper rack options. Search results can include different dimensions and products; confirm the exact rack's working depth, installed footprint, included safeties and complete cost.

Search Amazon: 30-inch rack options Search Amazon: deeper rack options

Measure the room before choosing a depth

Start with the rack’s published exterior footprint. Then reserve space behind it for baseboards, bolts, storage pins or a cable stack, and space in front for the bench and your body. A rack that technically fits against the wall can still be miserable to use if the bench cannot roll out or the bar cannot be loaded comfortably.

For an illustrative room budget, you might reserve 36–48 inches in front of the rack. This is not a manufacturer minimum or a universal exercise allowance. Replace it with the exact installed envelope from the rack and attachment instructions, then rehearse bench movement, walkout, external lifts and spotter-arm travel with your equipment.

Check width separately. A full-length Olympic bar is about 79–87 inches long. An illustrative side-loading reservation of 18–24 inches can push the room budget beyond 10 feet, but it is not a universal manufacturer clearance. Check your plate, collar and hand access in the installed room. Our 6ft vs 7ft barbell fit guide covers that measurement.

24-inch rack depth: the compact choice

Twenty-four inches is enough for controlled squats and benching for many lifters. Owner discussions consistently show that the concern is often psychological rather than mechanical: some people dislike feeling close to the front or rear uprights even when the lift fits.

The bigger limitation appears when storage horns, plates or a rear-mounted pulley occupy the same space. A plate stored on a rear upright can intrude into the bar path or reduce walkout room. If you choose 24 inches, plan storage on the wall, outside the rear uprights or on a separate tree.

30-inch rack depth: the best default

Thirty inches is the compromise that creates the fewest regrets. REP describes it as its standard and most popular depth, with enough room to work while preserving space. It gives an additional six inches over a 24-inch cage—enough to feel meaningful during a squat walkout—without taking the extra 11 inches required by a 41-inch rack.

For a roughly 49-inch-wide rack, moving from 24 to 30 inches adds only about two square feet to the cage footprint. That is usually a good trade when the room can absorb it.

41-inch rack depth: the dedicated-gym choice

A deep rack feels open and flexible, but it is not automatically safer or more stable. Stability depends on the rack design, base, anchoring, rear stabilizer and stored weight. A bolted 24-inch rack can be more secure than an unanchored deep rack.

The space cost is also larger than the 11-inch difference suggests. You still need front working clearance, rear clearance and room to move around the frame. A 41-inch cage can become a poor choice in a nominally large room if a cable stack or plate storage extends behind it.

Depth-specific parts can lock in the decision

Rack depth is part of the attachment ecosystem. Strap safeties, pin-and-pipe safeties, flip-down safeties, crossmembers and some cable components are sold for specific depths. A 24-inch safety will not span a 30- or 41-inch cage.

Before buying, map the complete rack you expect to own in two years. Verify:

• Upright size and actual dimensions, such as 2x3 or metric/imperial 3x3.
• Hole diameter, spacing and hardware size.
• Depth-specific safety and crossmember availability.
• Whether a rear stabilizer or floor anchors are required.
• How cable systems change the exterior depth and bench position.
• Whether stored plates can contact the loaded bar.

Current market benchmarks

Prices checked September 16, 2026 show why depth should be chosen as part of a complete configuration. REP listed the modular PR-4000 builder from $1,249 and the PR-5000 from $1,499. Those historical starting prices are not current complete-cart quotes; current crossmember choices are separated below. Titan listed a 36-inch-deep T-3 power rack at $519.97, illustrating that brands use different depth increments rather than one universal standard. Rogue’s comparable ecosystems commonly use 24, 30 and 43 inches.

REP advertises a 30-day return window and lifetime warranty coverage on selected products. Large rack returns can still involve disassembly, packaging and freight rules. Confirm the exact configured rack’s warranty, return shipping and anchoring requirements before ordering.

Pricing note: Rack prices change with height, depth, color, pull-up bar, safeties and shipping. Compare complete configurations rather than advertised starting prices.

Depth is only one compatibility decision. Compare 2x3 vs 3x3 rack tubing and 5/8 vs 1-inch rack holes before choosing safeties, storage or cable attachments.

If the 24-inch PR-4000 bay fits the measured exercise envelope and matching safety parts: Configure that PR-4000 layout and complete cost. For another series or depth, return to the series-by-series comparison above before selecting parts.

Frequently asked questions

Is a 24-inch power rack deep enough to squat in?

For many lifters, yes. It supports a short walkout and full-length safeties. A lifter who takes several steps, leans forward substantially or dislikes close uprights may prefer 30 inches.

Does a deeper power rack hold more weight?

Not necessarily. Load capacity depends on steel, construction, bracing, hardware and anchoring. Depth mainly changes working space and footprint.

Should I get 30 or 41 inches?

Choose 30 inches unless you can name a specific reason for 41, such as internal plate storage, a preferred long walkout or a planned attachment that uses the added space. Eleven inches of saved room is valuable in most garages.

Is advertised rack depth the total footprint?

Often it is not. The number may describe interior depth or crossmember length. Uprights, feet, stabilizers and attachments add to the exterior measurement. Use the assembled dimensions from the exact configuration.

Research methodology

We compared current dimensions, configuration options, pricing and policy language from REP Fitness, Rogue Fitness and Titan Fitness. We also reviewed recurring home-gym discussions about squat walkouts, bench positioning, storage interference and room constraints.

Still planning the room? Use our home gym equipment buying order to spend on the pieces that change training first.
