REP Ares 2.0 vs Athena: Cost, Rack Fit and Training

Choose Ares 2.0 if you want two adjustable cable handles plus dedicated lat pulldown and low-row stations in one compatible rack. Choose Athena if cable accessories are the priority, you already have a lat/row solution, or a smaller initial purchase matters more than an integrated system.

Affiliate disclosure: WOD Fever may earn a commission from qualifying purchases through the REP links below. This is a research-based comparison of manufacturer specifications and current US prices, checked October 9, 2026; we have not tested these systems.

Considering a wall-mounted Athena? Check its exact dimensions, bench positioning and complete cost with our room-fit worksheet.

This comparison focuses on standard rack-mounted Ares 2.0 and Athena. Wall-mounted packages and Summit Smith configurations need their own complete layout. Jump to cost, usable resistance, rack fit or your quote worksheet.

Which system fits the way you train?

Ares vs Athena price: compare the same number of sides

The headline Athena price is for one side. The live selectorized Dual option is a package price, so multiplying the single-side price by two also gives the wrong comparison. These are dated attachment prices for the shown PR-4000, 80-inch, 30 + 16-inch six-post options, not complete gyms.

The relevant opening premium is $1,200: $2,999.99 − $1,799.99. That is Ares versus dual selectorized Athena without a separate lat/row attachment, upgrades, tax or fit changes. It is not a comparison against a single $949.99 cable unit.

Does Athena stay cheaper after adding lat pulldown and low row?

One unbundled selectorized example is $1,799.99 + $1,349.99 + $119.99 = $3,269.97: dual Athena, the separate selectorized lat/row attachment with NO RBS selected, and a separately priced Rear Base Stabilizer 2.0. That is $269.98 above the $2,999.99 Ares attachment. A bundle or existing compatible stabilizer can change this total; do not pay for the same stabilizer twice.

This does not make the packages identical. Separate lat/row uses its own 1:1 stack, while Ares combines its two 2:1 stacks for bilateral pulls. The separate unit also has its own space requirements. If you already own a working lat/row system, compare only the new spending needed to add Athena.

Buy plate-loaded now, convert later?

The current dual-side Athena conversion kit is $1,119.99. Buying the dual plate-loaded attachment now and that kit later totals $949.99 + $1,119.99 = $2,069.98, or $269.99 more than buying dual selectorized Athena directly at today's prices. Existing plate-loaded owners face the kit cost only; their earlier purchase is a sunk cost. Conversion supplies 170 lb stacks, not the optional 220 lb upgrade.

Plate-loaded remains a sensible permanent choice when it fits your plate inventory and workflow. Buying it merely as a short stop before conversion buys lower initial spending at a higher current total.

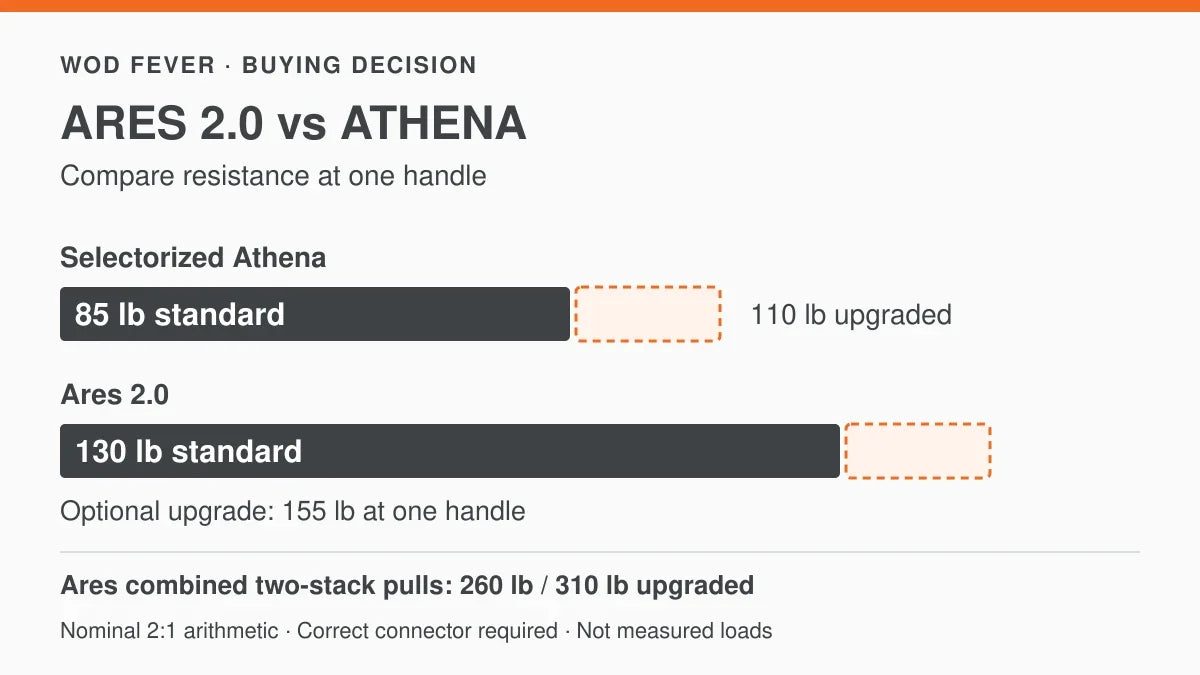

Compare resistance at the handle, not stack labels

At a nominal 2:1 ratio, divide stack weight by two. These are manufacturer-based calculations, not measured friction-adjusted loads.

Athena's upgraded 110 lb per handle may cover your accessory work while still falling short of a heavy single-handle pull. Two independent handles do not turn into a dedicated lat station merely because two stacks exist. Plate-loaded Athena is rated for 540 lb loaded per unit, nominally 270 lb at 2:1, but the 10.6-inch horns and actual plate thickness can limit usable loading before that rating. Price the plates you can physically load, not just the advertised maximum.

Rack compatibility and room fit: five checks before checkout

1. Identify the rack version. Standard side-mount Athena and Ares are REP PR-4000 / PR-5000 routes, with configuration limits. PR-4000 six-post installs need the updated rear 16-inch crossmembers with vertical holes; PR-5000 V1's alternating hole pattern is excluded. Do not assume another brand's 3 × 3 rack fits.
2. Match height and cable length. Match an 80-inch attachment to the 80-inch rack, and 93-inch to 93-inch. Ares depth changes need different cables. Four-post PR-5000 options need a dedicated configuration check; a standard four-post Ares retrofit uses 16-inch crossmembers.
3. Measure the complete installed outline. Include front pulleys, rear lat/row hardware, plate-storage spacers, foot extensions and every overhead obstruction. REP's current Athena tech specs say 6.0 inches of added front depth, while its FAQ says 7.9 inches. Reserve at least the larger allowance while planning, then confirm the exact build drawing before ordering. That allowance does not include your workout clearance.
4. Rehearse bench and bar travel. Mark the proposed footprint with tape, move your bench into flat and incline positions, and leave room for a loaded bar and cable movements. A footprint that fits the floor can still block the exercise you bought it for.
5. Check stabilization and accessory exclusions. Athena plus separate lat/row needs the compatible RBS 2.0; Ares replaces the RBS. Four-post Ares needs bolting or REP's prescribed front and rear extensions. Smith compatibility is specific to rack, depth and orientation.

Use the REP ceiling and garage-fit worksheet, the Ares four-post vs six-post comparison and the PR-4000 vs PR-5000 guide for the detailed rack decisions. If a Smith is involved, check the exact REP Smith/cable configuration limits.

Your complete Ares vs Athena quote worksheet

Enter new spending only, using two quotes with the same rack height, depth and desired exercises. Enter 0 for equipment you already own or a component already included elsewhere. Keep optional upgrades out of both quotes unless you actually need them. No live prices are fetched here.

For an existing rack owner, the rack line may be 0. For a new buyer, leaving it blank or pretending it is included makes the attachment price look like a complete gym. Compare what you would purchase now; do not subtract uncertain resale proceeds from one option only.

Frequently asked buying questions

Choose the next step

For a new all-in-one cable build, price Ares against a fully specified Athena alternative. For an existing rack with enough back-training equipment, price the Athena sides you need. If the room or training priorities are still unsettled, use the Home Gym Planner or rack vs functional-trainer decision guide first.
