REP Athena Wall Mount: Dimensions, Garage Fit and Cost

REP wall-mounted Athena suits a small home gym when you want two adjustable cable handles and front-of-rack barbell training without buying a separate functional trainer. Choose it only after checking the wall, the usable lifting position and the entire working envelope. A shallow stored footprint does not mean you can lift in that same space.

Affiliate disclosure: WOD Fever may earn a commission from qualifying purchases through the REP links below. This guide uses manufacturer specifications and current US listings checked October 9, 2026. We have not installed or tested this equipment.

Start with the exact dimensions, then use the room-fit worksheet and the complete-cost checklist. For standard rack-mounted cable attachments, use our Ares 2.0 vs Athena comparison.

REP Athena wall-mount dimensions: 80 vs 93 inches

Use total installed height rather than the upright name. Measure from your finished training floor to the lowest obstruction, including the garage door throughout its travel, tracks, opener, beams and lights. Mats or a platform reduce that measured clearance.

At an unobstructed 96-inch ceiling, the 80-inch version leaves 14.2 inches above the listed equipment height; the 93-inch version leaves only 1.2 inches. Those are subtraction results, not recommended assembly or pull-up clearances. Your body, the pull-up bar choice and the installation sequence need their own allowance. A taller model that physically fits may still fail your intended movement.

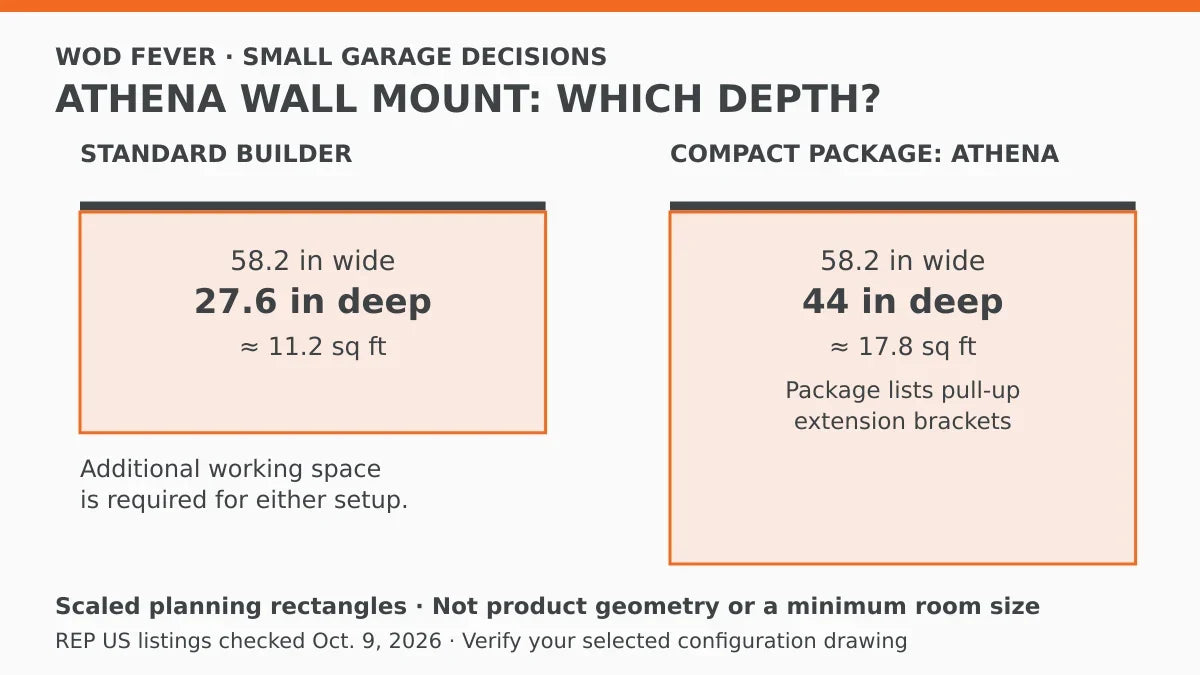

Why one Athena depth says 27.6 inches and another says 44

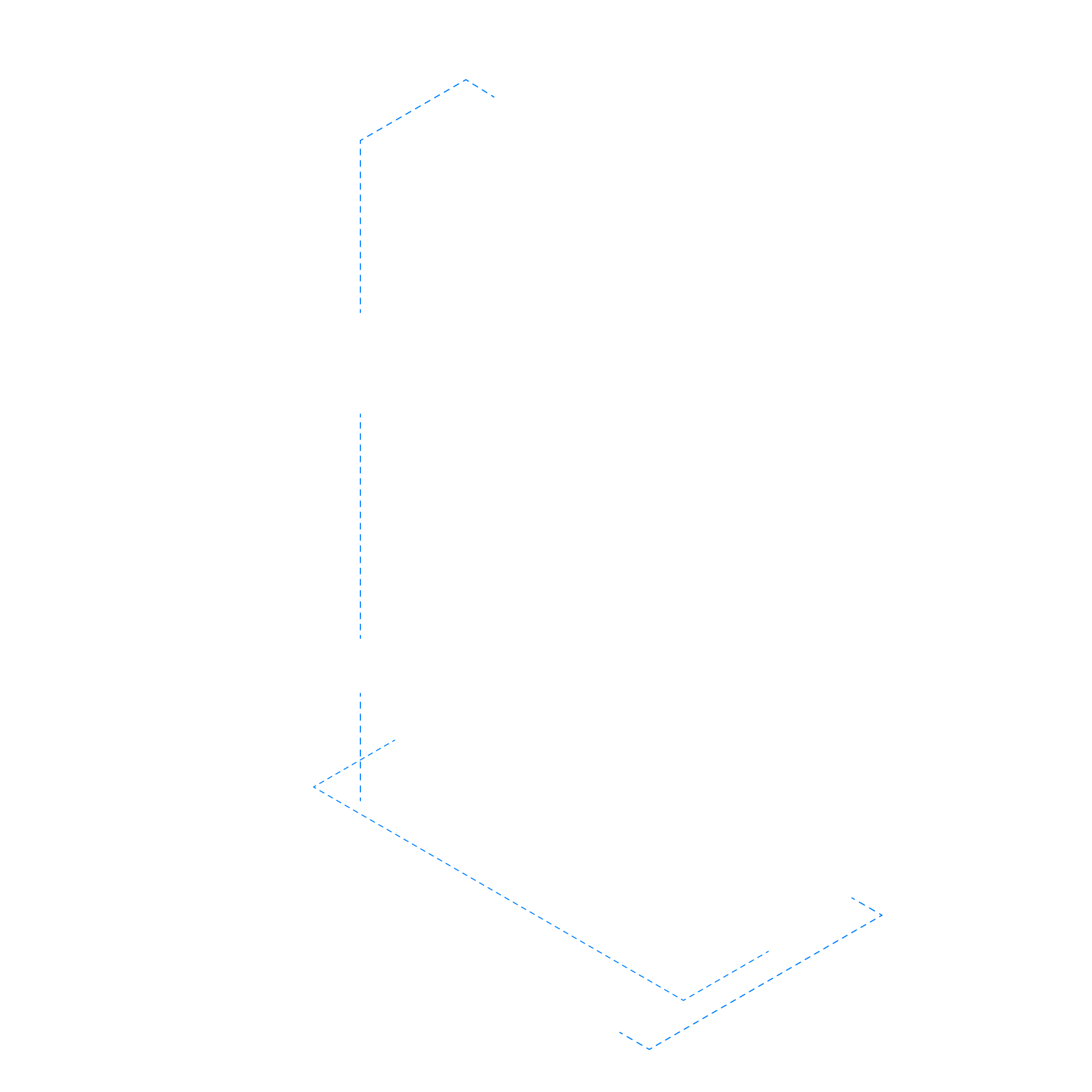

REP’s standard wall-mounted builder lists 27.6 inches of depth. Its Compact Home Gym package lists 44 inches and includes a pull-up bar with extension brackets. Treat these as separately specified envelopes; verify the drawing and components of your actual quote. Do not buy the larger package while reserving only the smaller builder’s rectangle.

The standard rectangle is about 11.2 square feet; the package rectangle is about 17.8 square feet (width × depth ÷ 144). Neither area is a minimum safe room size. The extra 16.4 inches of listed package depth matters in a garage even before a person or bench moves into position.

Wall-mounted Athena room-fit worksheet

Enter inches. Choose the published equipment envelope, then enter the additional clearances you have measured for your own movements. Do not use cable travel as required room depth: cable travel is available cable movement, while your room requirement depends on exercise position. Include the full barbell and plate-loading width when choosing the side allowance.

Worked planning example, not a clearance prescription: With 96 inches of available height, 120 inches of width and 84 inches of depth, an 80-inch standard setup plus user-chosen allowances of 12 inches above, 12 on each side and 36 in front requires 93.8 × 82.2 × 63.6 inches. It leaves 2.2, 37.8 and 20.4 inches respectively. Changing only to 93-inch uprights makes the planned height 106.8 inches, 10.8 inches too tall. These illustrative allowances may be insufficient for your exercises or barbell; measure yours.

Can you squat and incline bench with wall-mounted Athena?

Check your actual unrack height before choosing the 80-inch model. REP lists a highest J-cup position of 59 inches versus 68 inches for the 93-inch model, and specifically flags trolley interference on the 80-inch version. A model that fits the ceiling can still put the bar too low or interfere with reracking. Match your measured bar position to the chosen J-cup and trolley setup; do not select by your standing height alone.

REP says the wall-mounted rear stabilizer’s cutout accommodates the rear foot of its benches for incline work up to 30 degrees. That statement does not establish clearance at every higher bench angle or for a non-REP bench. Place the exact bench outline, rear foot, pad and intended bar path on your room plan. Higher-angle pressing can demand a different bench position or setup.

For bench selection rather than rack fit, use our Nighthawk vs AB-5200 2.0 guide. A bench that stores vertically still occupies floor space while you train; allow somewhere to move it for cable work.

Mounting and compatibility checks before ordering

If your wall or installation is unsuitable, consider a supported freestanding rack setup instead. Use the rack ceiling and garage-fit guide for the broader room decision.

REP wall-mounted Athena price: build a complete quote

On October 9, 2026, the US wall-mounted Athena builder showed a $2,474.99 starting price; the Compact Home Gym package showed $2,889.92, and the wall-mounted Ares 2.0 builder showed $4,039.93. These are separate builder starting prices, not matched finished configurations. Height, color, stacks, included accessories and selected options can change the quote. Do not compare the $949.99 single-side rack attachment price to the wall-mounted package as if the frame were included.

Budget example: A $3,000 budget leaves $525.01 above the standard Athena builder’s dated starting price. That remainder must cover every excluded item and selected upgrade; it is not an estimate of your tax or installation cost. If your existing rack already fits, the lower-cost route may be adding just the compatible cable sides.

When a cheaper setup is sufficient—and when to consider Ares

If cable accessories are the missing part of an otherwise useful gym, standard Athena stacks may be enough. Retain existing barbell and back-training equipment instead of replacing it. If you mostly squat, press and deadlift, a suitable rack without cables may already solve the training problem.

Wall-mounted Ares adds dedicated lat pulldown and low-row functions and heavier nominal cable resistance. Its depth and width also vary with trolleys, pull-up extensions and storage wings. Compare its complete drawing and quote with Athena only after deciding you need those extra stations. Our Ares vs Athena training and cost analysis explains the functional difference; its attachment-only price examples do not apply directly to these wall-mounted packages.

Quick answers

Your next step

Measure the room, test your unrack and bench positions, then save a complete configuration quote. If those checks pass and dual adjustable cables are the missing capability, start with the wall-mounted Athena builder. If your overall equipment priorities remain unclear, use the Home Gym Planner first.
