A lateral-raise machine trains the upper arm moving outward from the torso. A shoulder press drives a load overhead, and a reverse fly moves the arms outward from in front of the body. Combination machines can support several movements, but a shared station is not automatically equivalent to a dedicated commercial lateral-raise machine.
Swipe or scroll the comparison to see every column.
| Configuration | Contact / adjustment | Published size and loading | Cost and meaningful limit |
|---|---|---|---|
| GMWD Lateral Raise and Shoulder Press SP00 | Seated combination machine, padded upper-body support, four seat and four backrest positions; two separate loading functions. | 65 in high; maker reverses 36 and 39 in length/width labels in its text and table. Four loading posts for 2 in plates; advertises 800 lb capacity. | $379.99 displayed item price; temporary checkout promotion excluded from comparison. Starting resistance and per-function limit not established. Manufacturer specifications |
| GMWD Standing Multi-Flight CPJ | Standing, adjustable arm geometry and headrest; independent arms allow unilateral/bilateral movement. Fifteen height settings, listed 40–70 in. | 43.6 L × 48.2 W × 75.6 H in; 450 lb stated maximum; listed 190 lb is gross weight, not verified assembled weight. | $699.99 item price; plates separate. No verified unloaded starting force or full moving-arm envelope. Manufacturer specifications |
| Owned dumbbells or an appropriate cable station | Free arm path; choose an implement and starting setup you can control. | Dumbbell mass and pulley/handle force are not directly interchangeable with a machine plate label. | Incremental cost may be $0. Compare dumbbell configurations / cable buying guide |
The contact point must fit your upper arm
A dedicated seated lateral-raise machine usually transfers force through upper-arm pads. A hand-grip or multi-flight mechanism changes how you guide the movement and how torso support is used. The correct fit depends on your shoulder position relative to the pivot and contact surface; a high capacity is not evidence that a short or tall user fits.
SP00 combines a shoulder-press station with a raise function. CPJ permits standing fly and raise configurations through its adjustable independent arms. Verify the exact movement in the instructions and demonstration before assuming either reproduces the commercial machine you use. We do not extend CPJ’s documented independent-arm claim to every combination machine.
Use dimensions as a screening rectangle, not a clearance promise
SP00’s two conflicting axis labels still describe a 36 × 39 ÷ 144 = 9.75 sq ft rectangle. Confirm orientation before planning a wall placement. CPJ’s stated rectangle is 43.6 × 48.2 ÷ 144 = 14.59 sq ft, approximately 4.84 sq ft more. Neither rectangle includes the full moving-arm sweep, user stance, plate loading or safe entry.
These are permanent machines, not products we have verified to fold into storage. Check the delivery path, ceiling and access to every loading post. Do not choose by footprint alone and discover that a plate cannot be slid onto a sleeve beside the wall.
Starting resistance is a buying gate
The checked pages do not establish an unloaded starting-force measurement for these movements. If your intended lateral-raise load is light, obtain the exact model’s starting resistance and adjustment details before ordering. A large nominal capacity does not establish a light enough first repetition. Lever arms and pad position also mean 20 lb on the sleeve is not a 20 lb dumbbell raise.
SP00’s advertised 800 lb figure describes the machine’s stated loading design with four posts; it is not a verified 800 lb allowance for each arm or for each function. CPJ’s 450 lb statement is likewise a manufacturer limit, not a recommendation or measured effective hand load.
Buy the machine only when it solves a defined limitation
Choose seated support when a repeatable supported position is the reason for the purchase and the exact fit works. Choose an adjustable standing multi-flight when you need its independent-arm configurations and have room for the stance and moving arms. Keep dumbbells or cables when they already allow controlled, progressively loaded raises.
A complete plate-loaded quote is machine + compatible plates/collars + any required fixing or flooring + delivery/assembly + tax. GMWD advertised free delivery to the lower 48; confirm destination and service. The $379.99 and $699.99 figures are dated item prices, not installed totals. Do not count a short-lived auto-applied promotion as a permanent price advantage.
Current exact Amazon offers could not be verified, and no direct GMWD affiliate agreement is assumed. The links in the comparison are manufacturer references. Buyers who primarily need versatile upper-body training can continue to dumbbell options, cable-system costs or press-specific equipment; a press attachment is not a lateral-raise substitute.
Sources and comparison limits

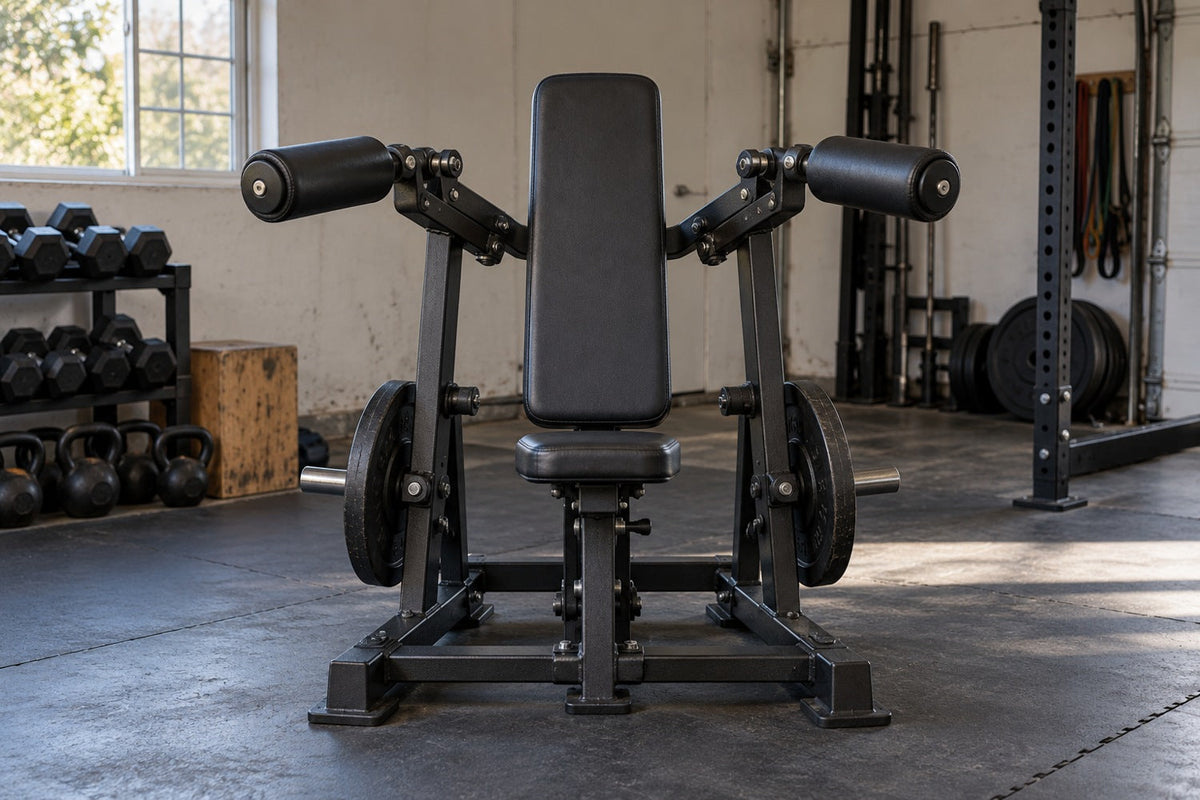

Comparisons are based on manufacturer specifications and published product information, reviewed October 24, 2026. No hands-on testing, ownership, measured comfort or verified commission credit is claimed. Hero imagery is an editorial illustration; exact-model source photographs are identified separately. Prices are dated observations; verify the selected configuration and delivered charge.
