Use horizontal wall storage when ceiling clearance is tight; use a vertical floor holder when you have room to lift the bar fully above its tube. A bar can fit while stored and still hit the ceiling during removal. Rack attachments work only when the exact mount fits and does not interfere with lifting.
Comparisons are based on manufacturer specifications and published product information checked October 22, 2026. We have not conducted hands-on testing. Recommendations are editorial judgments about fit and use. Prices are dated US equipment examples; tax, delivery, installation and extras can change the total.
Barbell storage racks compared
On a phone, swipe the table sideways.
| Configuration | Dimensions / protection | Choose it for | Check before buying |
|---|---|---|---|
| Titan 5-sleeve holder, 401151; $101.97 | 12 × 12 in base; 9 in high; 19 lb; listed 51 mm holes, bars 50 mm or less; plastic liners. | A few ordinary bars with adequate overhead room. | Tube insertion depth and bar geometry; five holes do not guarantee five specialty bars fit. |
| Titan 9-sleeve holder, 400346; $118.97 | 19 × 19 in base; 9 in high; 40 lb; lined tubes. | A larger bar collection and a heavier bare base. | Loaded outline, balance and clearance between irregular bars. |
| REP Gun Rack, 3-bar; $69.99 | 21.7 in bracket length; 5.5 in depth; plastic liners; recommended bracket separation 46 in. | Low ceilings and a suitable structural wall. | Correct anchors and support zones for each bar; hardware information conflicts on REP’s page. |
| REP Gun Rack, 8-bar | 53.1 in bracket length; same listed depth; 16.32 lb total. | Multiple straight bars along a clear wall. | Confirm exact 8-bar price and mounting configuration; do not apply 3-bar price. |
| Rack-mounted tube or cradle | No separate floor stand, but changes the occupied rack outline. | A confirmed compatible rack with an unused exterior location. | Upright size, hole and bolt dimensions, mounting orientation, ceiling and lifting interference. |
Calculate ceiling clearance before ordering
Measure to the lowest obstruction above the storage position with the garage door in every relevant position. Include lights, openers, tracks, beams and the route your hands follow. The bar must clear the tube’s top lip before you can move it away.
Required overhead height ≈ full bar length + tube-mouth height + handling margin
An 86.6 in bar and a tube mouth 9 in above the floor reach 95.6 in at the instant the bottom sleeve clears the mouth. With a hypothetical 2 in handling margin, that is 97.6 in, or 8 ft 1.6 in. A nominal 8 ft ceiling fails that example even though the bar may fit while seated.
Stored top height = bar length + tube-mouth height − insertion depth. Measure actual insertion depth; the storage holder’s outer height is not proof that the bar seats on the floor. The removal model assumes the bar stays vertical and the tube is fixed. Do not count on tipping a heavy loaded stand or angling bars around obstructions.
Specialty bars need more than a 2-inch hole
A safety squat bar has a projecting yoke and handles. A multi-grip bar has a broad frame. A trap bar has a large offset body. Those structures can strike the wall, adjacent bars or your legs even when one sleeve fits into the socket. Lay out the occupied shape of each bar and check the storage maker’s permitted orientations.
Titan advertises specialty-bar use, but the published hole count is not a tested mixed-bar arrangement. Keep heavy asymmetrical bars arranged according to the holder’s instructions; do not assume an empty neighboring socket provides enough clearance. Prefer a dedicated holder or an approved horizontal support when the geometry is uncertain. Read the multi-grip comparison and safety squat bar guide for exact model dimensions.
Sleeve and finish protection
Choose smooth, intact liners at contact points. Wipe grit from sleeves and keep the tubes dry. A nylon or plastic liner reduces metal contact; it does not guarantee protection if a bar is forced into a narrow tube or dropped into it. Follow the bar manufacturer’s storage guidance, especially where an end cap or bearing assembly could bear on the bottom.
For horizontal racks, check where each bracket supports the bar. A 46-inch suggested bracket spacing is not a universal match for every short or cambered bar. Support the maker-approved straight sections, away from bends and sleeve transitions, with room to lift up and out. Our bar length and rack-fit guide explains why overall length alone is insufficient.
Wall hardware and full setup cost
REP’s live Gun Rack FAQ says mounting hardware is not included, while its overview says concrete-installation hardware is included. This conflict remains unresolved. Budget for the correct wall-specific hardware and confirm the contents with REP before ordering; do not interpret either sentence as permission to use a generic drywall anchor.
Complete cost = holder + structural mounting hardware + installation + any separate specialty-bar support + delivery and tax. The checked 9-bar Titan costs $17 more than the 5-bar model; that buys a different base and socket layout, not a promise your room accommodates four more bars. The REP 3-bar wall rack has the lowest checked equipment price here, but installation can change the total.
Choose horizontal storage when the removal-height calculation fails and you have suitable wall structure. Choose a lined floor holder when moving bars vertically is straightforward and the loaded stand fits. Choose a rack attachment only after exact compatibility and working clearance are established. Keep stored bars and weight plates outside the lifting and walking lanes.
Sources and comparison method

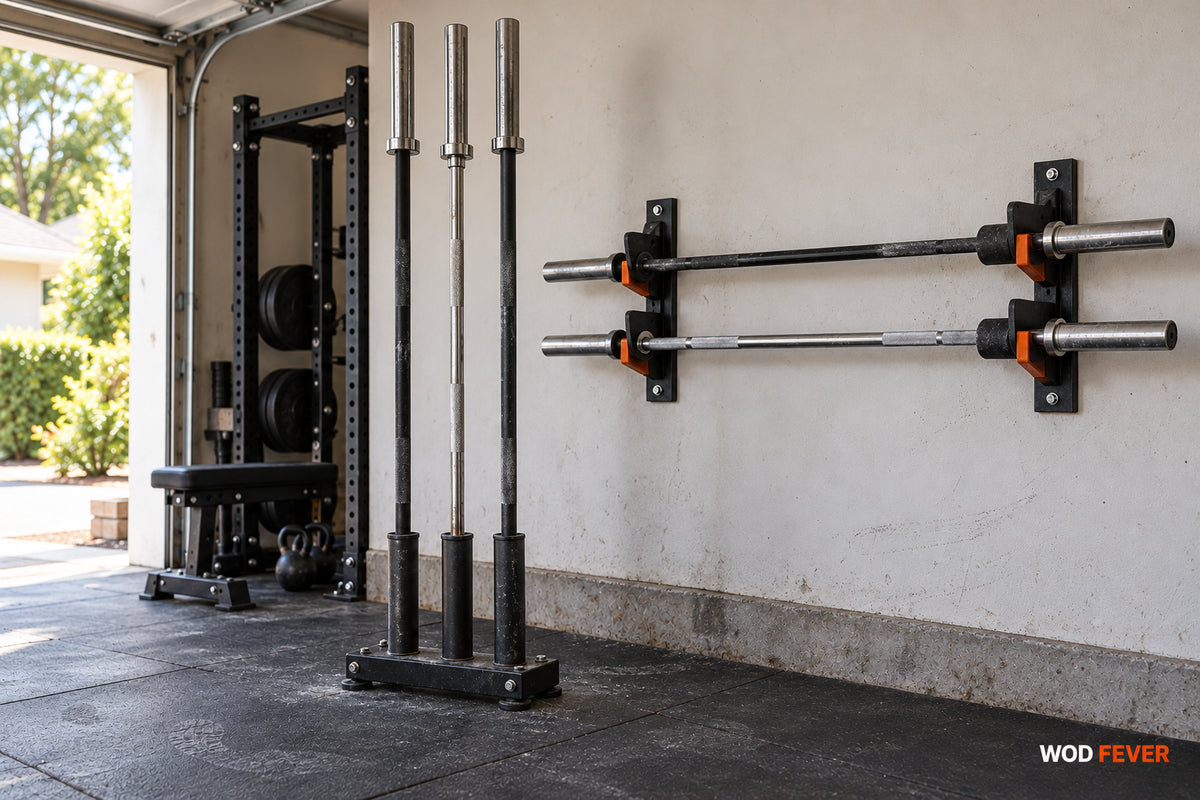

Manufacturer ratings describe the maker’s stated limits, not our independent tests. Exact model, variant and current manual control fit and permitted use. Hero imagery is an editorial illustration of the equipment category, not a photograph of our testing or an exact model.
