Buy a fixed axle for fixed-axle event practice; choose a rotating-sleeve fat bar when that different sleeve behavior is what you want. Neither automatically replaces an ordinary barbell. Shaft diameter, sleeve diameter and collar compatibility are separate purchase checks, even when every listing says “Olympic plates.”
Comparisons are based on manufacturer specifications and published product information checked October 22, 2026. We have not conducted hands-on testing. Recommendations are editorial judgments about fit and use. Prices are dated US equipment examples; tax, delivery, installation and extras can change the total.
Exact axle-bar configurations
On a phone, swipe the table sideways.
| Model | Grip / sleeves | Weight and usable lengths | Purchase implication |
|---|---|---|---|
| Titan 60 in axle, 430024; $95.97 | 49 mm shaft and sleeves; smooth powder coat; fixed axle design. | 17 lb, stated tolerance ±2 lb; 8 in sleeves; 43 in sleeve-to-sleeve; 880 lb stated rating. | Compact floor lifts; 43 in span can be too narrow for a conventional rack. |
| Titan 84 in axle, 430025; $103.97 | 49 mm shaft and sleeves; same fixed axle family. | 24 lb, ±2 lb; 15.5 in sleeves; 52 in sleeve-to-sleeve; 660 lb stated rating. | More useful rack and plate space; verify actual support points. |
| Rogue Axle, 84 in; $145 | 1.9 in / 48.26 mm outside diameter; fixed pipe construction. | 25 lb; 15.5 in loadable sleeves; 52 in between collars; maker says tested at 650 lb. | Rogue explicitly recommends axle collars. A test load is not the same specification as Titan’s capacity rating. |
| Texas 2 in Fat Axle Power Bar; from $569.99 | 50 mm listed shaft; aggressive full-length knurl; rotating sleeves with bronze bushings. | 55 lb; 51⅝ in listed inside-collar span. Page conflicts: 86 vs 86.5 in overall, 15 vs 16 in sleeve length. | A different fat-bar experience. Exact sleeve outside diameter and dimensional conflicts need confirmation before a close-fit purchase. |
Fixed versus rotating: match the movement and event
A traditional fixed axle keeps the loaded ends and grip structure together. Turning the shaft therefore behaves differently from turning an ordinary Olympic bar with rotating sleeves. The Texas Fat Axle has a thick shaft but separately rotating sleeves. “Axle” alone does not identify which mechanism you are buying.
For competition preparation, obtain the event’s actual implement rules: bar diameter, sleeve behavior, knurling, allowed grip or straps, and lift height. A fully knurled rotating fat bar can be useful for your own training while failing to reproduce a smooth fixed axle event. We do not repeat manufacturer claims that sleeve rotation prevents injury or that one design necessarily creates superior strength gains.
The Titan operator manual identifies the 84-inch model as 7AXLEBAR / 430025 and describes 1.9-inch fat-grip construction. Its current product table says 49 mm. Because 1.9 inches converts to 48.26 mm, treat those as differing published descriptions rather than interchangeable precision measurements. If your collar is sensitive to a fraction of a millimeter, get confirmation for the current unit.
Olympic plates do not guarantee Olympic collars fit
Many Olympic plate holes will slide over a 48–49 mm sleeve, while a clamp designed around an ordinary approximately 50 mm sleeve may remain loose. Rogue’s own axle listing warns that standard barbell collars may not work. Use collars explicitly approved for the exact sleeve diameter; “2-inch bar” marketing is not enough.
Rogue HG 2.0 Axle Collars are listed for 1.9-inch specialty bars and explicitly excluded from standard 1.98-inch bars. That does not prove they clamp Titan’s stated 49 mm sleeves. Ask the collar maker to confirm the usable clamping range. Texas’s “standard collar” description does not supply an exact sleeve diameter, so we leave that numeric field unverified.
Keep the plate bore, sleeve outside diameter and collar inside clamping range as three separate entries on your purchase checklist. Our Olympic versus standard bar guide explains the broader plate-system distinction.
Rackability and plate space
Measure the outside span of the two J-cup support surfaces, then check that both land on an unobstructed straight shaft section with clearance from collars. A 43-inch sleeve-to-sleeve span cannot be assumed to fit a rack with a wider support arrangement. An 84-inch overall length is not, by itself, a rackability measurement either.
The 15.5-inch sleeve on the full-length Titan and Rogue offers more plate room than Titan’s 8-inch short axle. With hypothetical 3.5-inch bumpers and a 1.5-inch collar allowance, the long sleeve fits four plates by floor division; the short sleeve fits one. Actual plate widths, retaining hardware and rated limits control. The shorter Titan has the higher stated capacity; do not “correct” the maker’s two ratings by assuming a longer bar must hold more.
An axle’s thick grip can limit an axle-bar deadlift before the legs and back reach the load used with a conventional bar. Keep training loads specific to the implement and purpose. Do not treat a lower axle pull as a like-for-like regression in ordinary-bar strength.
Complete-cost decision
Complete cost = axle + confirmed-compatible collars + plates + any approved rack/support changes + delivery and tax. Titan’s checked 84-inch version is $8 more than its short version. Rogue is $41.03 more than the Titan 84-inch equipment price, before different collars and delivery. Texas is a different sleeve/knurl proposition with unresolved dimensions, not simply a more expensive identical bar.
Choose the Titan short model for compact non-rack work only after the fit and load calculations. Choose a full-length fixed axle for a conventional fixed-axle training goal and more sleeve room. Compare Texas when rotation and full knurling are intentional requirements, after obtaining the missing measurements. Keep your ordinary barbell for the work it already does well, and plan storage for the thicker implement.
Sources and comparison method

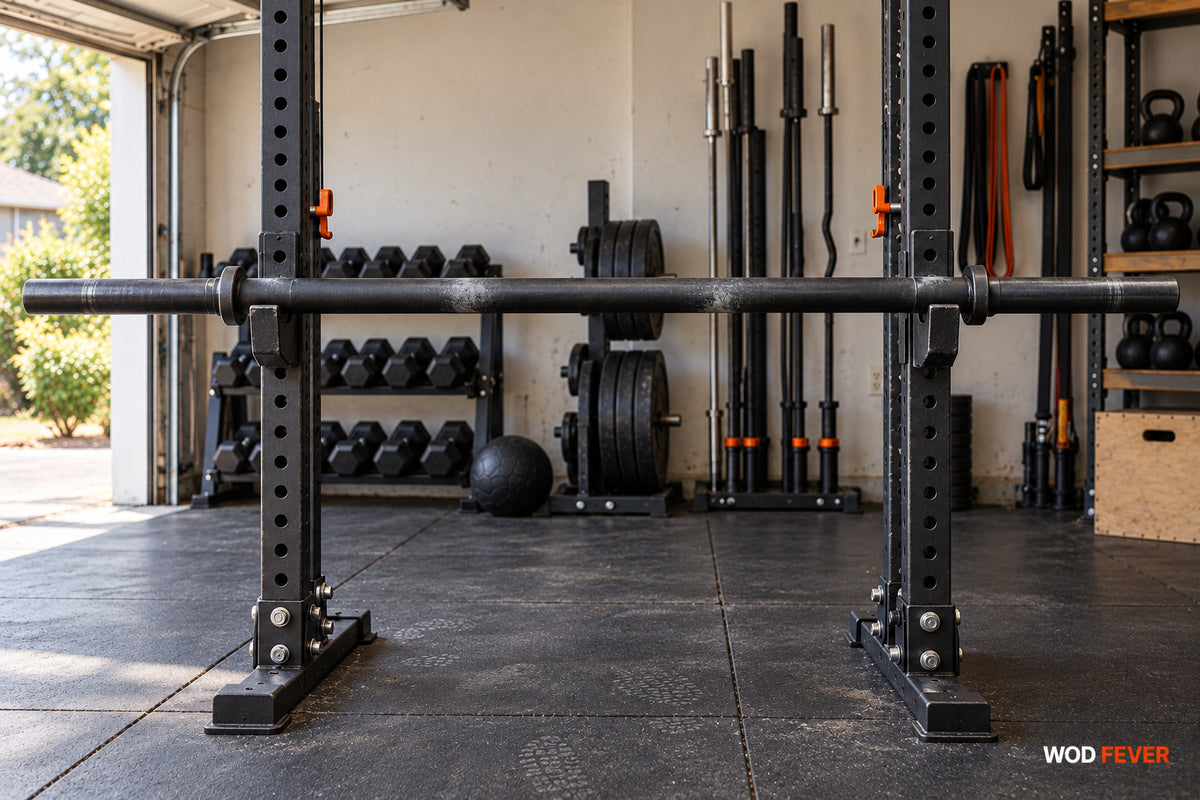

Manufacturer ratings describe the maker’s stated limits, not our independent tests. Exact model, variant and current manual control fit and permitted use. Hero imagery is an editorial illustration of the equipment category, not a photograph of our testing or an exact model.
