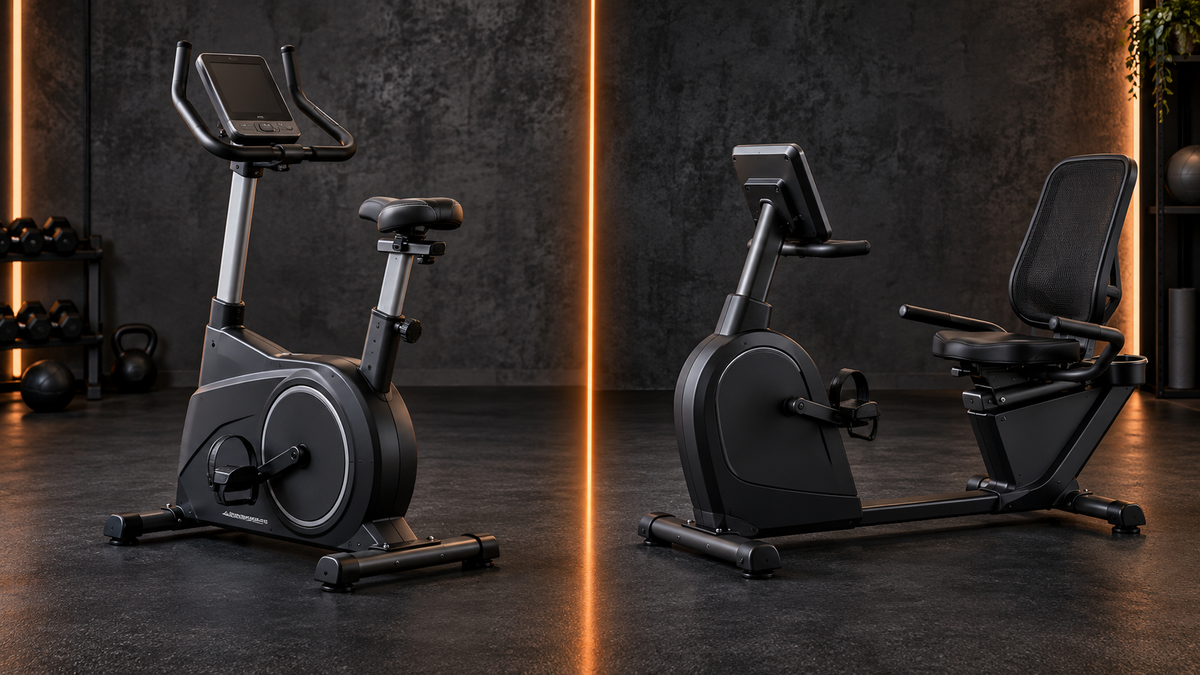

Upright and recumbent bikes use the same basic pedaling pattern but place the body very differently. The upright bike stacks the rider over the pedals; the recumbent bike supports the back and moves the pedals forward.
At a glance
| Factor | Upright bike | Recumbent bike | Decision impact |
|---|---|---|---|
| Posture | Torso above pedals | Reclined with back support | Comfort and training specificity differ |
| Footprint | Shorter | Longer | Upright fits smaller rooms |
| Mounting | Higher saddle / top tube area | Usually low step-through | Recumbent is easier for many users |
| Intensity | Easy to hard; some permit standing | Best seated steady or interval work | Upright has more posture options |
| Seat pressure | Narrow saddle | Larger seat and backrest | Neither fit is universally comfortable |
Schwinn 130 vs 230: what changes in a real room?
These two examples make the space and support tradeoff concrete. They are the versions currently listed by Schwinn in the US with 16 resistance levels and 13 workout programs, checked October 20, 2026. Comparisons are based on manufacturer specifications and published product information.
Schwinn 130 upright
- Machine dimensions
- 41.3 L × 21.4 W × 54.5 H in
- Machine weight / user limit
- 58.4 lb / 300 lb
- Seat and posture
- Conventional padded saddle and upright handlebars; no chair-style backrest.
Choose this example for: less floor length when you are comfortable using a saddle. Check the actual saddle adjustment and handlebar reach before buying.
Find Schwinn 130 on AmazonSchwinn 230 recumbent
- Machine dimensions
- 64 L × 27.7 W × 44 H in
- Machine weight / user limit
- 81.6 lb / 300 lb
- Seat and posture
- Vented backrest, sliding seat rail with an adjustment lever, and stationary entry/exit handlebars.
Choose this example for: seated back support when the longer frame and side access fit your room. Try getting in, adjusting the seat and getting out.
Find Schwinn 230 on AmazonThese links open Amazon search results, which can include older versions and multiple sellers. Match the model and specifications before ordering; prices and availability vary. As an Amazon Associate, WOD Fever earns from qualifying purchases.
The floor-space difference is larger than the length difference
Calculated from the listed length and width, the 130 occupies about 6.1 sq ft and the 230 about 12.3 sq ft—roughly twice the rectangular floor area. The 230 is 22.7 inches longer and 6.3 inches wider. These are machine outlines, not complete exercise or access zones.
What neither model comparison tells you automatically
- Room fit: mark the machine outline on the floor, then allow the clearance required by the exact manual. Check pedal movement, seat adjustment, entry, exit and nearby doors.
- Rider fit: the shared 300 lb limit does not establish reach or comfort. Both the shortest and tallest regular rider should check the adjusted position.
- Power and apps: both models use a 110–120 V outlet and include a power cord. Both have built-in programs; connected apps such as Zwift or Explore the World require a separate subscription and your own compatible device. Do not include those app features in a subscription-free budget.
- Delivery: compare the packaged dimensions with the narrowest doorway and stair turn, and confirm who moves and assembles the bike.
Specification sources: Schwinn 130 manufacturer specifications and Schwinn 230 manufacturer specifications. Use the manual for the exact version being purchased.
Where the upright bike wins
Upright bikes take less floor length and keep body position closer to outdoor cycling. Indoor-cycling versions support high cadence and, when the manufacturer permits it, standing efforts. A correctly fitted saddle still concentrates pressure and requires some balance.
Where the recumbent bike wins
The step-through frame, chair-style seat and backrest create a stable platform. That can make longer easy sessions and entry/exit more approachable. The trade is a larger footprint and less direct transfer to an outdoor-bike posture.
Fit and joint angles
On either style, the knee should not remain deeply bent at the farthest pedal position, and the hips should not rock to reach. Recumbent fit is adjusted mostly by moving the seat along a rail; upright fit uses saddle height and sometimes fore-aft and handlebar changes.
Back or knee pain is not solved by a category label. Recumbent support may help some users, while the forward pedal position may feel worse to others. Clinical restrictions deserve professional guidance.
Intensity and calories
An upright bike can involve more trunk support and allows more aggressive positions, but a recumbent bike can still produce demanding intervals with enough resistance and cadence. Calorie estimates are influenced by body data and the machine's algorithm, so compare your own repeatable workouts rather than displays across models.
Related guide: Compare bike and rower training styles.
Decision sequence
- Choose based on required support and mounting, not the belief that one style is automatically easier.
- Measure seat adjustment for the shortest and tallest regular users.
- Use an upright bike for cycling transfer; use a recumbent bike for stable supported cardio.
- Compare operating footprint, transport wheels and maximum user weight.
FAQ
Is a recumbent bike good for seniors?
It can be because of the step-through frame and back support, but individual mobility, balance and medical needs vary.
Can you get a hard workout on a recumbent bike?
Yes. Increasing resistance, cadence or interval duration can create a high cardiovascular demand while remaining seated.
Which is better for small spaces?
An upright bike usually uses less floor length. Measure handlebar width and required clearance as well as catalog footprint.
Decision matrix
| Priority | Better default | Reason |
|---|---|---|
| Small footprint | Upright | The pedals sit below the rider instead of far in front |
| Easy step-through access | Recumbent | Lower entry and a stable seat reduce the balance demand of mounting |
| Outdoor-cycling transfer | Upright | Body position and force direction are closer to conventional cycling |
| Back support | Recumbent | A seatback supports the torso, though fit still determines comfort |
| Standing efforts | Upright or indoor-cycling bike | Only use standing positions when the model is designed for them |
| Long supported sessions | Recumbent | The chair-style seat spreads pressure differently |
Try both household extremes on the exact model
Primary source check: October 23, 2026. Match the model year, market and selected configuration. These are published specifications, not measurements or tests by WOD Fever.
| Exact model | Maker route | Fit measurements still needed |
|---|---|---|
| Schwinn 130 upright | Manufacturer model and buying page | Seat-height travel, saddle-to-pedal range and handlebar reach not quantified in the retrieved product text; do not infer them from the user-weight limit. |
| Schwinn 230 recumbent | Manufacturer model and buying page | Seat-rail travel, usable pedal-reach extremes and entry opening not quantified in the retrieved product text. A rail-adjustment lever does not establish fit. |
- Have the shortest regular rider set the bike, reach the pedals through a complete slow revolution and reach the controls without losing their supported position.
- Repeat with the tallest rider; check knee/hip closure at the near pedal and avoid rocking or reaching at the far pedal.
- Try mounting, dismounting and changing the seat between those two settings. Record the actual adjustment and any limit, not only the riders’ heights.
- Obtain the exact-version manual before use. The maker’s linked parts/manual destinations could not be retrieved during this check, so their operating-clearance details remain unverified.
For the 130, the product page states a minimum ceiling of user height + 17.9 in. For a 74-in user, that formula gives 91.9 in; it is not a universal rule for other bikes or a complete access/movement check.
Do recumbent bikes burn fewer calories?
Not inherently. Workload and duration determine the training cost, and a recumbent bike can support hard resistance and cadence. An upright position may recruit more trunk musculature and make standing possible, while a recumbent position may allow a user to train longer. Console estimates from different machines should not be treated as laboratory measurements.
Space and transfer considerations
Recumbent bikes are longer and need side clearance for entry. Upright bikes use less floor length but place the saddle higher. Test the actual mount, dismount and seat adjustment for the least mobile regular user. For either type, transport wheels help only when the machine can be tipped and rolled by the person responsible for moving it.
