Best Dumbbell Rack: Shelf Fit, Adjustable Stands & Cost

First fit task: verify vertical lift-out room

Do this before allocating pairs by shelf length. REP’s published 4.5-inch hand-grab opening is not vertical space between tiers. No dated manufacturer dimension for that vertical clearance was located in the current listing check on October 24, 2026. Obtain a measurement of the exact rack or written REP confirmation before ordering for a tight fit; the 34.6-inch outer height cannot supply it.

A wider-shelf alternative: Rogue Universal Storage System 2.0

This guide’s researched scope is REP fixed, adjustable and modular storage, plus one wider-shelf alternative, not every rack on the market. Rogue’s Universal Storage System 2.0 lists 70-inch shelves within a 76.5 × 23.75-inch footprint, versus REP’s 42.5-inch usable fixed tier. Select angled dumbbell shelves rather than assuming the flat kettlebell tray is equivalent. The maker lists two-tier height of 29.25 inches or three-tier height of 45.25 inches, adding 3.25 inches for a dumbbell top shelf. That is a meaningful width option when the REP shelf plan fails; it is also a wider permanent object. Confirm the configured shelf/frame ratings, actual support geometry and vertical retrieval room separately. This is not a universal dumbbell-fit or load approval.

Primary listings checked October 24, 2026. No physical clearance measurement was performed.

We may earn a commission from qualifying purchases made through links in this guide, at no extra cost to you. As an Amazon Associate, we earn from qualifying purchases.

Comparisons are based on manufacturer specifications and published product information.

For a compatible REP 5–50 lb fixed dumbbell set, start with REP’s three-tier Dumbbell Rack. For QuickDraw or REP x PÉPIN, choose the matching Adjustable Dumbbell Stand tray variant. For mixed equipment and future expansion, quote the modular system. Load capacity is only one check: dumbbell geometry, shelf space and hand clearance can rule out a rack first.

Swipe the table to see every column.

Three different storage jobs — compare actual equipment fit
Storage choice	Published fit dimensions	Load / included components	Cost and skip condition
REP three-tier Dumbbell Rack	42.5 in usable length per tier; 10 in shelf depth; 4.5 in hand-grab opening. Outer: 48 L × 23.4 D × 34.6 H in.	1,000 lb total rating; rack only, dumbbells excluded. Fixed vertical shelf clearance not published.	$209.99. Skip without a physical fit check for non-REP dumbbells; no universal adjustable-cradle compatibility.
REP Adjustable Dumbbell Stand — QuickDraw or PÉPIN trays	31 W × 22.3 L in; technical height 18.1–21 in on wheels. QuickDraw trays 9 × 21.4 in; PÉPIN 7.2 × 19.8 in.	300 lb total rating. Matching trays, liners and casters; dumbbells and their cradles are separate.	$299.99. Match the tray variant; skip for an unsupported brand. Optional leveling feet $20.99 replace casters.
REP Stand-Alone Modular Storage System	41 in and 72 in shelf families. Example 41 in unit: 50.6 W × 30.1 D × 60 H in; shelf height set by build.	41 in dumbbell shelf 600 lb; 72 in reversible shelf 750 lb. These are per-shelf ratings, not whole-frame ratings.	Builder starts $497.95; not a quote for every illustrated build. Skip without checking all uprights, feet, shelves and hardware.

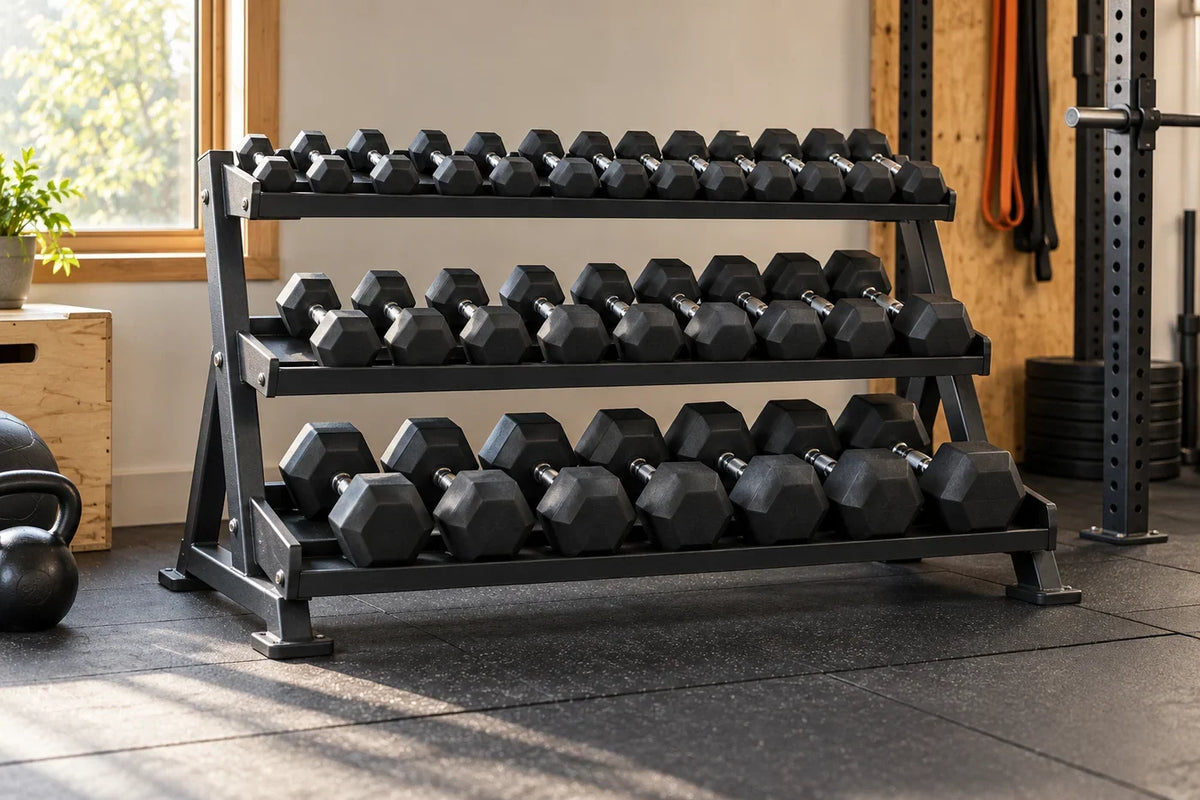

REP manufacturer image of three-tier Dumbbell Rack — Manufacturer image: REP Fitness. Labels use published manufacturer specifications. Shelf dimensions and hand access are different checks. Dumbbells are not included.

Fixed pairs: fit the heads, then check the load

REP says one three-tier rack holds its 5–50 lb set, two racks serve its 5–75 lb set, and its 5–100 lb set needs two racks with the 95s and 100s on the floor. Those claims apply to REP's listed sets; they are not a promise for every other manufacturer's dumbbells.

A 5–50 lb set in 5 lb increments contains 10 pairs and weighs 550 lb in total: 2 × (5 + 10 + … + 50). A 5–75 lb set weighs 1,200 lb. The 1,000 lb total rating therefore cannot support that entire second set on one rack, even before checking space.

Measure the widest dumbbell head dimension along the shelf, the depth where both heads contact the rails, and the room your fingers need around the handle. Sum actual occupied widths on each proposed shelf, including gaps for retrieval. Do not divide a 42.5-inch shelf by one small dumbbell's width and assume the large pairs fit.

Retrieval-space example: the dumbbell needs room to lift clear of the shelf, and your hand needs space around the handle. A load rating alone does not establish that your set fits. Generic rack shown.

Shelf fit worksheet

1 · Draw each tier

Write down usable length, front-to-back support geometry and vertical clearance. The three-tier rack’s missing shelf-spacing figure requires a direct measurement or manufacturer confirmation before a tight-fit order.

2 · Place the actual set

Assign each pair to a shelf. Add its two occupied head widths and retrieval gaps; test handles against the rail opening.

3 · Check each rating

Compare loaded shelf weight and total frame weight separately. A modular shelf rating cannot be multiplied into an assumed frame rating.

4 · Rehearse retrieval

Reserve space to stand, grip, lift clear and turn without hitting the tier above or a nearby bench. A storage footprint is not a working-clearance prescription.

Print-and-fill shelf allocation sheet

Rack/model: ____________________ Units: inches and pounds Date: __________

Record the exact rack and shelf version, manufacturer rating source and any measured dimensions. Print the worksheet pages from your browser’s print dialog, or copy the rows onto paper. Add more pair rows as needed. Blank means unknown, not zero.

On a narrow screen, swipe each table to see every column.

Pair allocation — measure the occupied width in the intended storage orientation
Tier / pair	Left + right occupied head widths (in)	Allocated gaps (in)	Required span (in)	Actual pair weight (lb)
Tier ___ / pair ___	___ + ___	___	___	___
Tier ___ / pair ___	___ + ___	___	___	___
Tier ___ / pair ___	___ + ___	___	___	___
Tier ___ / pair ___	___ + ___	___	___	___
Tier ___ / pair ___	___ + ___	___	___	___
Tier ___ / pair ___	___ + ___	___	___	___

Count each gap once. Allocate the gap within a pair and the gap after it to that row; use zero for a gap you are not adding. Include any chosen end margins once. Required span = left occupied width + right occupied width + allocated gaps. Pair weight is the sum of both actual dumbbell weights.

Tier summary — sum the pair rows assigned to each tier
Tier	Required / usable length (in)	Loaded weight / tier limit (lb)	Support and lift-out clearance	Result / missing evidence
Top	___ / ___	___ / ___	Verified / unknown: ___	___
Middle	___ / ___	___ / ___	Verified / unknown: ___	___
Bottom	___ / ___	___ / ___	Verified / unknown: ___	___
Whole rack	Not a substitute for tier checks	Sum of all loaded tiers ___ / frame limit ___	Installation / stability requirements: ___	___

Rating/dimension source and date: ____________________. Missing confirmation or measurement: ____________________. Do not substitute a whole-frame rating for an unpublished tier limit, divide it equally into assumed tier limits, or derive vertical hand clearance from the rack’s outer height.

Record “exceeds a known limit” if any entered width or load exceeds its applicable limit. Record “unverified” when required geometry, retrieval clearance, tier/frame limits or installation conditions are missing. If the entered width and load checks are within their limits, record that specific result; it does not certify support geometry, retrieval access or overall safety.

Hypothetical check: two pairs with four occupied head widths of 3.5in and 3in of total allocated gaps require 17in. On an 18in usable tier that leaves 1in. If the pairs weigh 50lb and 60lb, the tier carries 110lb; it exceeds a hypothetical 100lb tier limit by 10lb despite passing the width check. Unknown lift-out clearance remains unverified. These are arithmetic examples, not specifications for a REP rack or a real dumbbell set.

Adjustable dumbbells need their cradles

The REP stand is made for QuickDraw and REP x PÉPIN FAST Series, with different trays. Keep the original compatible cradles attached as instructed so selectors and return alignment work. Cradle dimensions, rather than the dimensions of the loaded dumbbell alone, determine fit.

The QuickDraw version weighs 65 lb and the PÉPIN version 69 lb. The listed stand footprint excludes your stance and the space needed to operate selectors. The optional leveling feet replace the included casters; they are not an extra stack of height added beneath the wheels.

Choose the matching REP stand tray

Modular storage: check the shelf-generation exclusion

REP's modular page lists 41-inch dumbbell, kettlebell and ball/plate shelves plus a 72-inch reversible dumbbell/kettlebell shelf. It explicitly excludes its product named “Rubber Coated Dumbbells” from the documented dumbbell-shelf combinations. Do not treat all products described casually as “rubber dumbbells” as the same line. Match the exact product and shelf.

The 3×3-inch current system is also different from the original 2×2-inch modular system; REP says the generations are not component-compatible. Quote the actual builder basket: uprights, required feet/crossmembers, shelf quantity/type, connecting hardware and any liners. The displayed starting price is not the price of a three-shelf 72-inch unit.

Build and price REP modular storage

Cost the complete storage decision

One three-tier rack is $209.99; two are $419.98 at the observed price. The adjustable stand is $299.99, or $320.98 with the optional feet before tax. These amounts exclude dumbbells. Product pages displayed free shipping, but confirm your delivery location and selected options at checkout. Metallic Black rack and stand availability must be checked on the exact variant.

Check REP rack fit and current variant

Buying storage before selecting the dumbbells can lock you into the wrong geometry. First compare fixed versus adjustable dumbbells; then use garage layout planning to reserve retrieval space. If a bench also needs a permanent home, compare bench storage dimensions.

Sources and further demonstrations

Product information checked October 20, 2026. Prices and availability can change; confirm the selected model, required components, shipping and tax before ordering.
